Two Factor Authentication: Mermaid Sequence Diagram

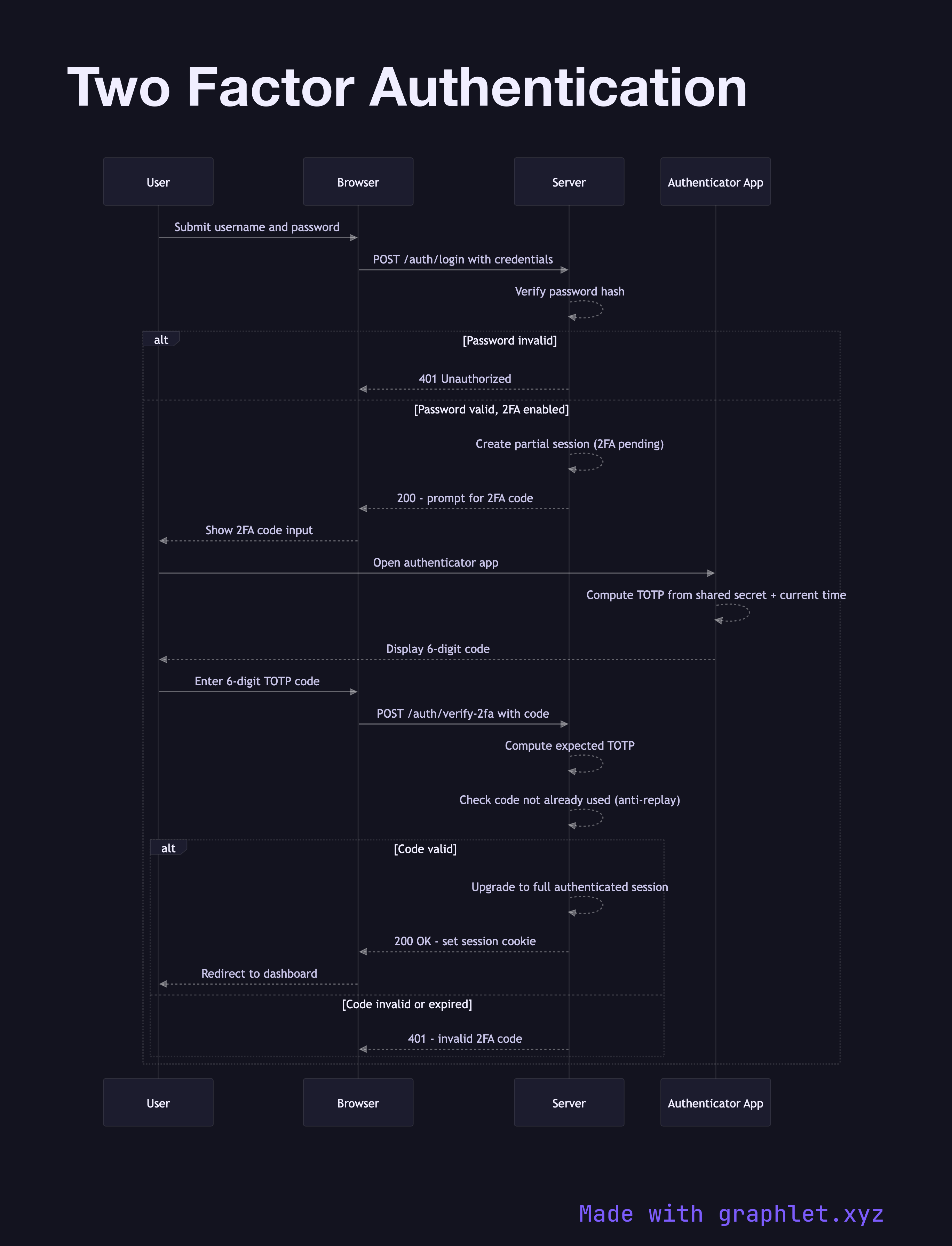

Two Factor Authentication sequence diagram

About Source

Two-factor authentication (2FA) adds a second verification step to the login process, requiring users to prove both something they know (their password) and something they have (a physical device or app). This dramatically reduces account takeover risk: even if a password is compromised in a data breach, an attacker cannot log in without also controlling the user's second factor.

The most common second factor for developer-focused apps is TOTP (Time-based One-Time Password), defined in RFC 6238. During enrollment, the server generates a shared secret and presents it to the user as a QR code. The user scans it with an authenticator app (Google Authenticator, Authy, 1Password). Both the server and the app independently compute a 6-digit code by running HMAC-SHA1 over the shared secret and the current 30-second time window. Because both sides use the same secret and the same timestamp, they produce the same code without any network communication.

The login flow is a two-step process. First, the user submits their username and password. If valid, rather than issuing a session or token immediately, the server transitions the user to a partial authentication state — a temporary, limited session that permits only the 2FA verification endpoint. The server asks for the TOTP code.

The user opens their authenticator app, reads the 6-digit code, and submits it. The server computes the expected TOTP for the current time window (and optionally the previous window to handle clock drift), compares it to the submitted code, and checks that this code hasn't been used before (preventing replay attacks within the same 30-second window). If valid, the server upgrades the partial session to a full authenticated session.

Recovery codes — a set of pre-generated single-use backup codes — should always be provided at enrollment time to prevent lockout if the user loses their authenticator device. For passwordless alternatives, see Magic Link Login.

Frequently asked questions

Two-factor authentication adds a second verification step to login, requiring users to prove both something they know (their password) and something they have (an authenticator app or device). This means a stolen password alone is not sufficient to compromise an account — the attacker also needs physical access to the second factor.

During enrollment, the server generates a shared secret and presents it as a QR code for the user to scan with an authenticator app. Both the server and the app independently compute a 6-digit code by running HMAC-SHA1 over the shared secret and the current 30-second time window. Because both sides use the same inputs, they produce the same code with no network communication required.

After a user submits valid credentials, the server does not immediately grant full access. Instead it creates a temporary partial session that permits only the 2FA verification endpoint. This prevents an attacker who steals the session from bypassing the second factor. Full session access is only granted after the TOTP code is successfully validated.

Provide pre-generated single-use recovery codes at enrollment time. When a user cannot access their authenticator, they can enter a recovery code to authenticate and regain access. Recovery codes should be treated as highly sensitive credentials — store only hashed versions server-side and advise users to keep them in a password manager or secure physical location.

mermaid

sequenceDiagram
    participant User
    participant Client as Browser
    participant Server
    participant AuthApp as Authenticator App

    User->&gt;Client: Submit username and password
    Client->&gt;Server: POST /auth/login with credentials
    Server-->&gt;Server: Verify password hash
    alt Password invalid
        Server-->&gt;Client: 401 Unauthorized
    else Password valid, 2FA enabled
        Server-->&gt;Server: Create partial session (2FA pending)
        Server-->&gt;Client: 200 - prompt for 2FA code
        Client-->&gt;User: Show 2FA code input
        User->&gt;AuthApp: Open authenticator app
        AuthApp-->&gt;AuthApp: Compute TOTP from shared secret + current time
        AuthApp-->&gt;User: Display 6-digit code
        User->&gt;Client: Enter 6-digit TOTP code
        Client->&gt;Server: POST /auth/verify-2fa with code
        Server-->&gt;Server: Compute expected TOTP
        Server-->&gt;Server: Check code not already used (anti-replay)
        alt Code valid
            Server-->&gt;Server: Upgrade to full authenticated session
            Server-->&gt;Client: 200 OK - set session cookie
            Client-->&gt;User: Redirect to dashboard
        else Code invalid or expired
            Server-->&gt;Client: 401 - invalid 2FA code
        end
    end
