Networking Diagrams: DNS, TLS, TCP & HTTP

Networking protocols power every web application, API call, and distributed system you build. Understanding how these protocols work at the packet and message level helps you debug latency, design resilient systems, and make informed architectural decisions.

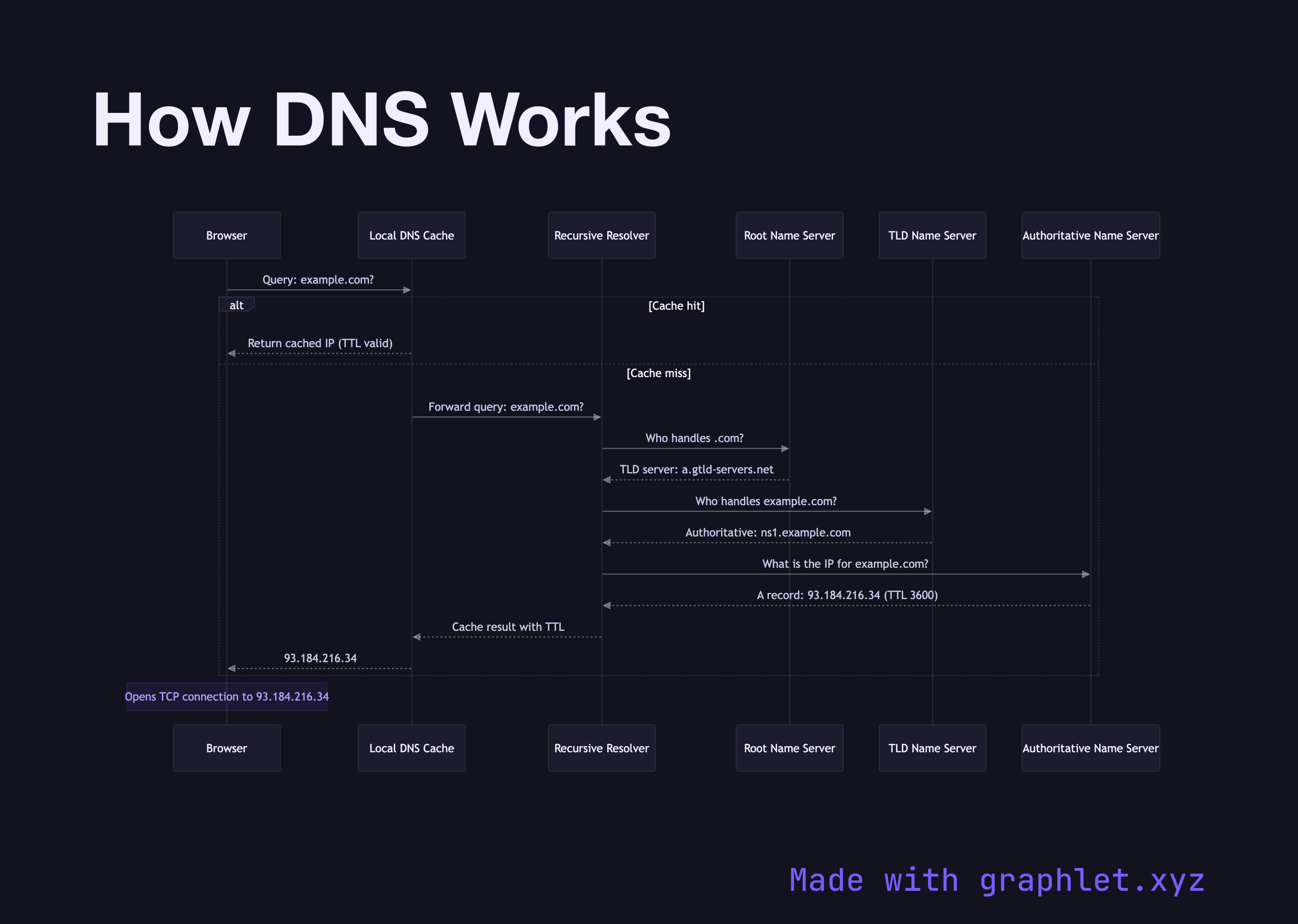

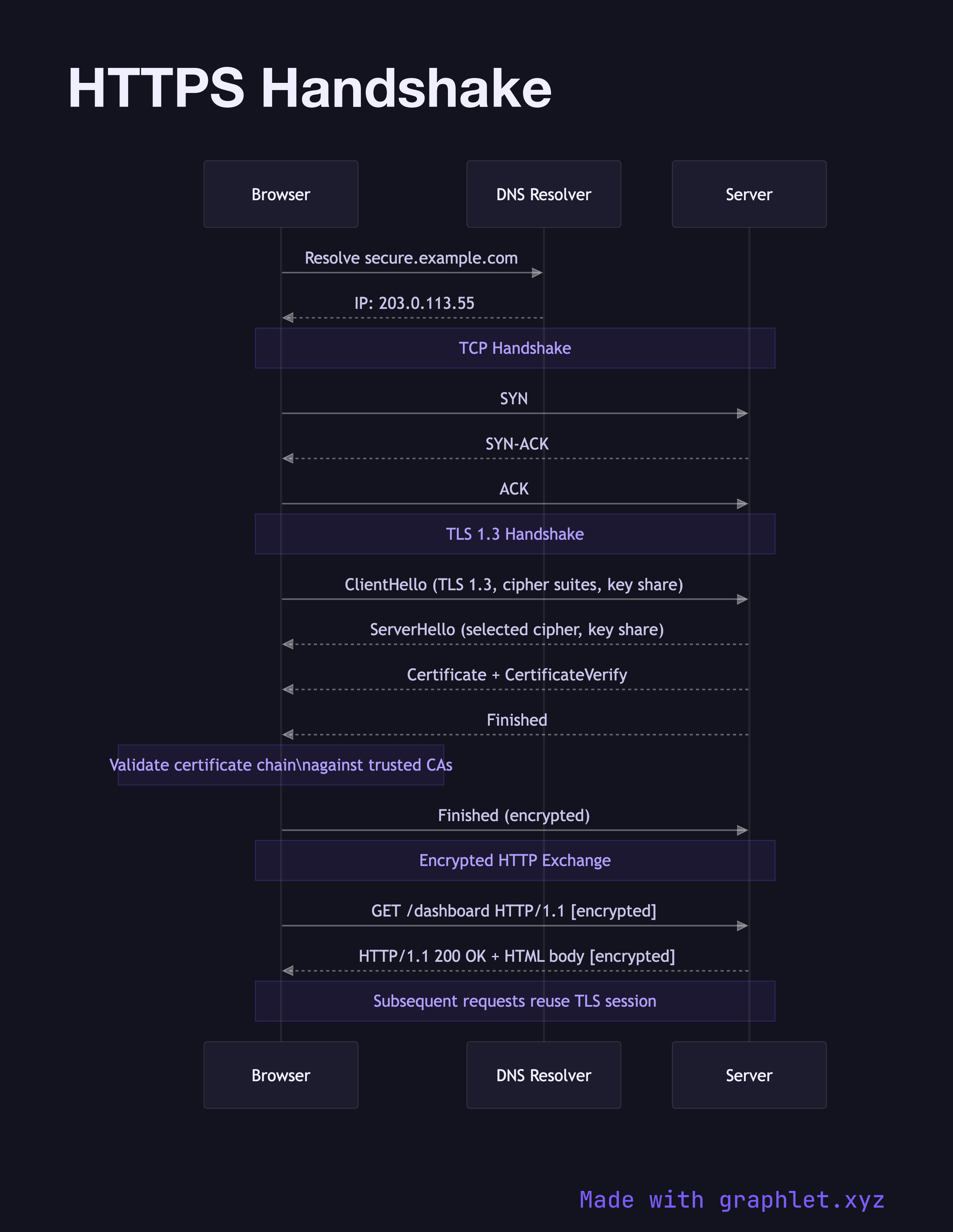

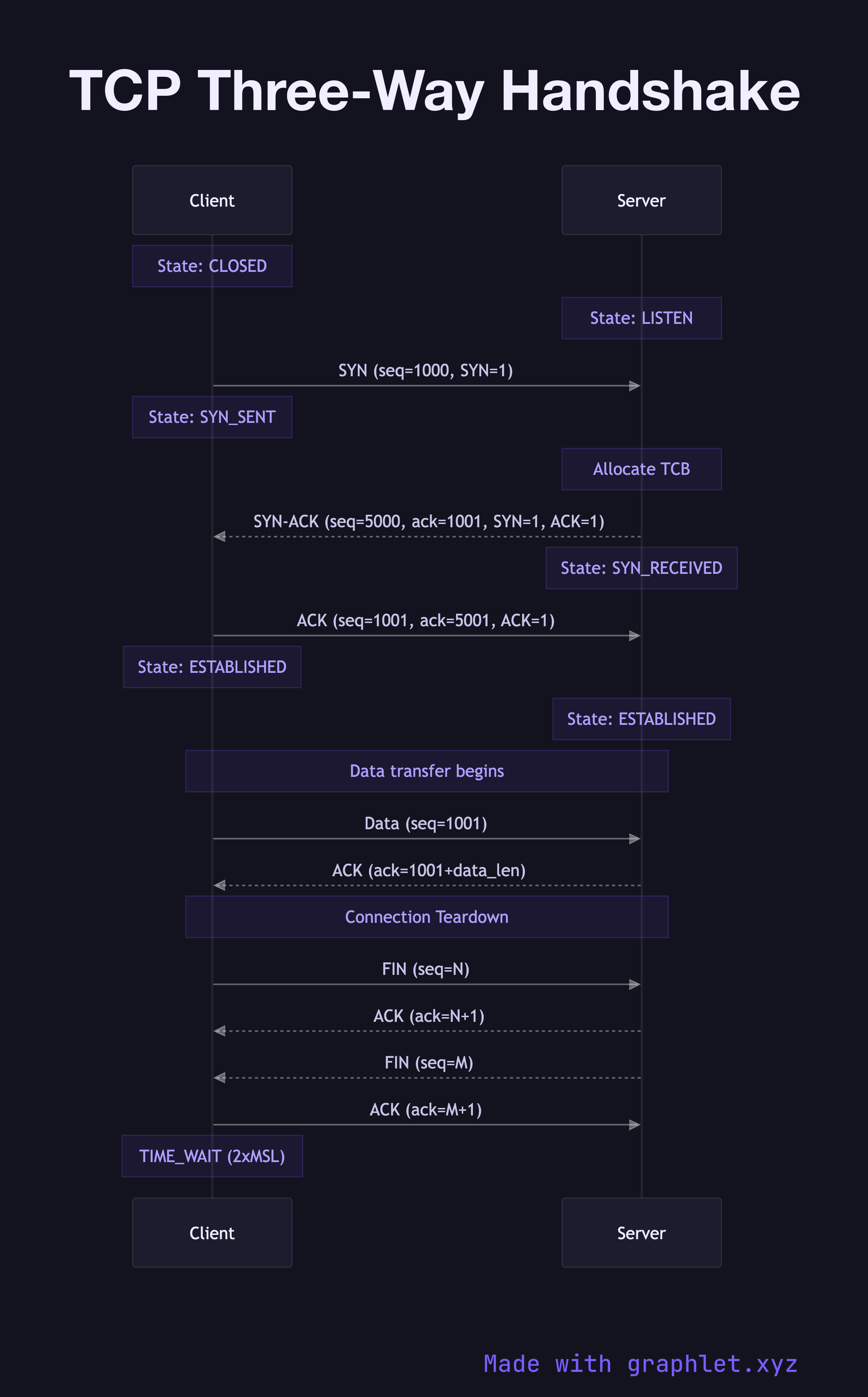

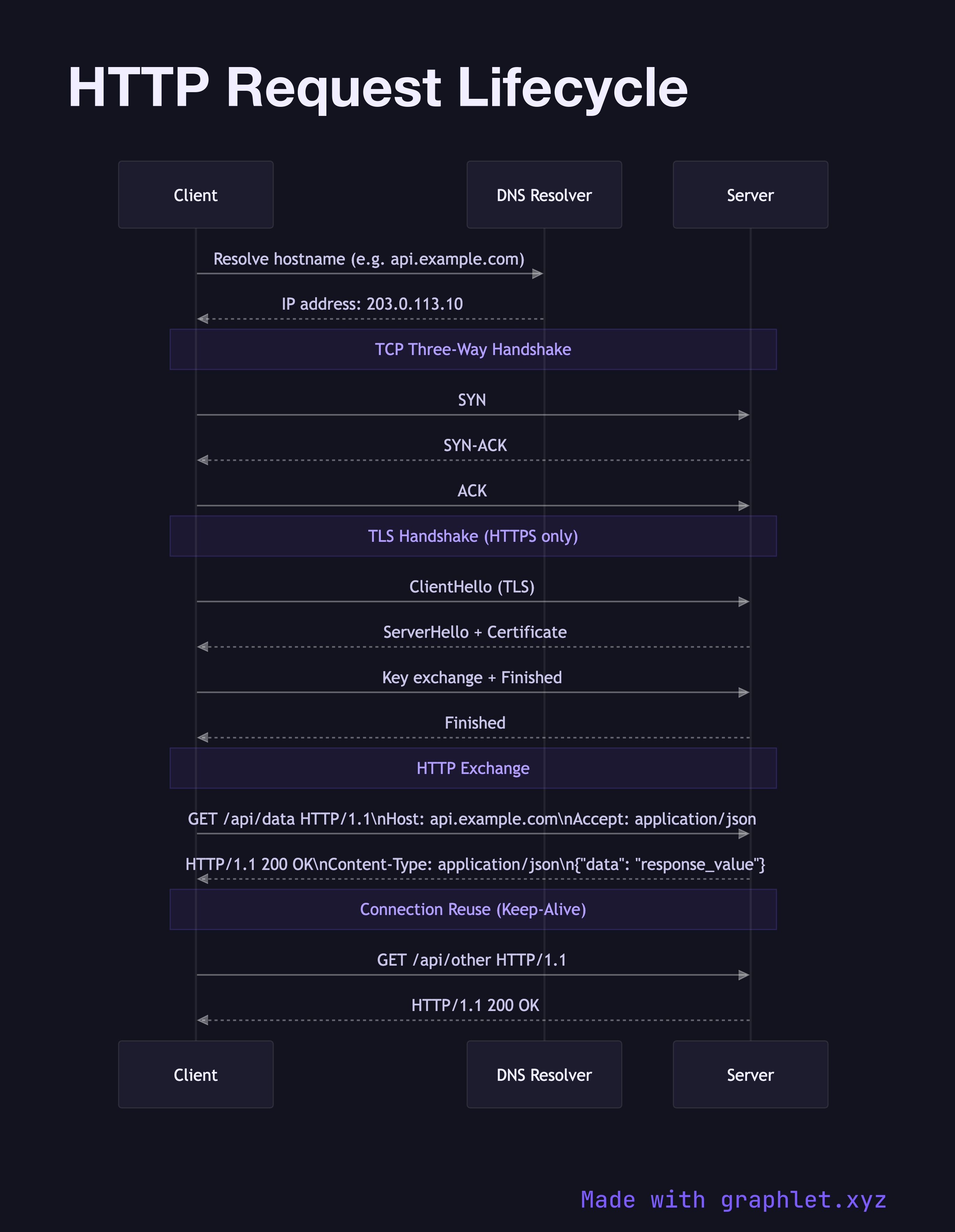

This collection covers the full stack of networking concepts developers encounter day-to-day. Start with the fundamentals: How DNS Works shows the recursive resolution process that turns a hostname into an IP address, while TCP Three-Way Handshake illustrates the connection establishment that underpins reliable transport. For secure communication, TLS Handshake and HTTPS Handshake walk through certificate negotiation and key exchange.

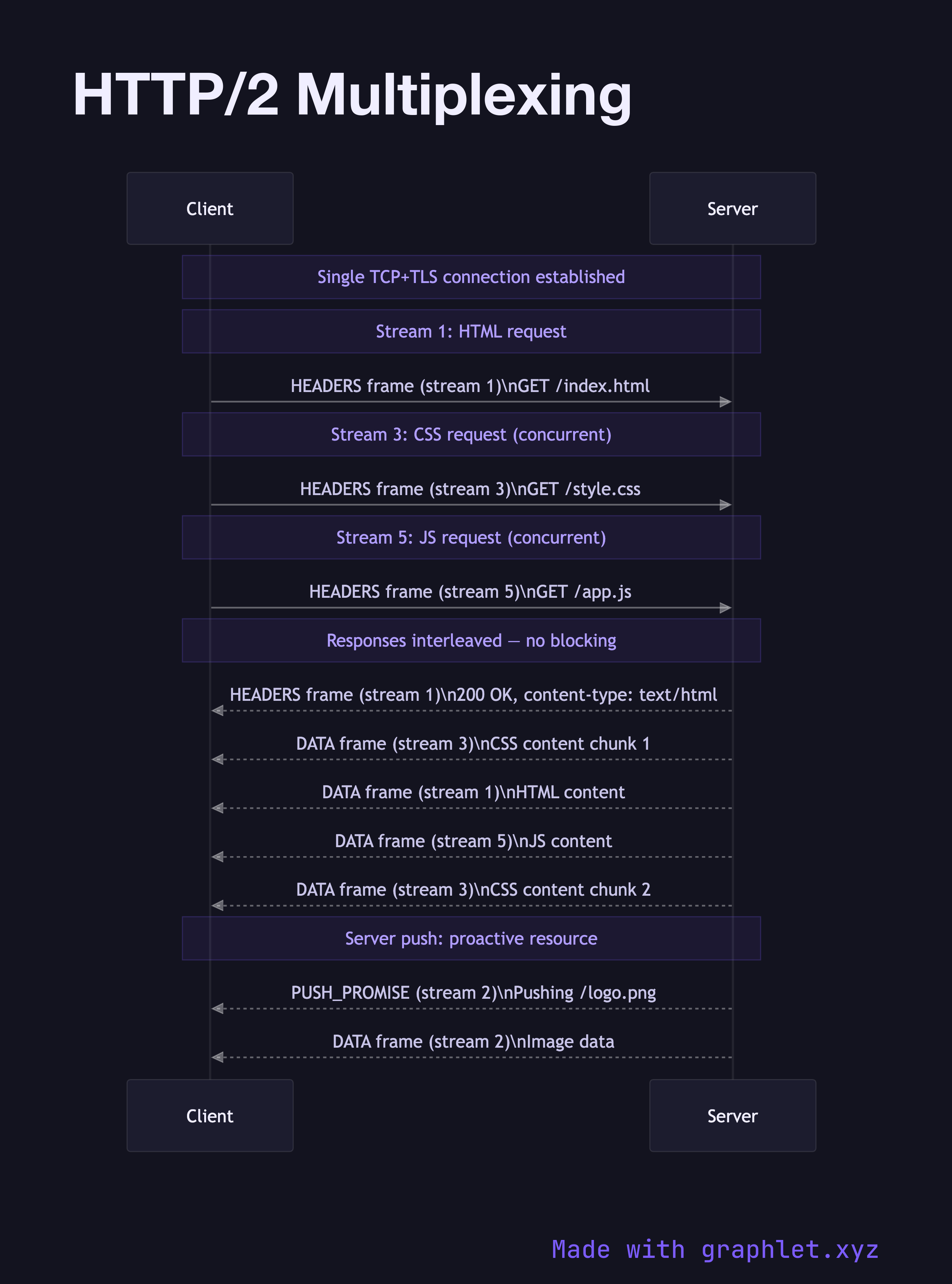

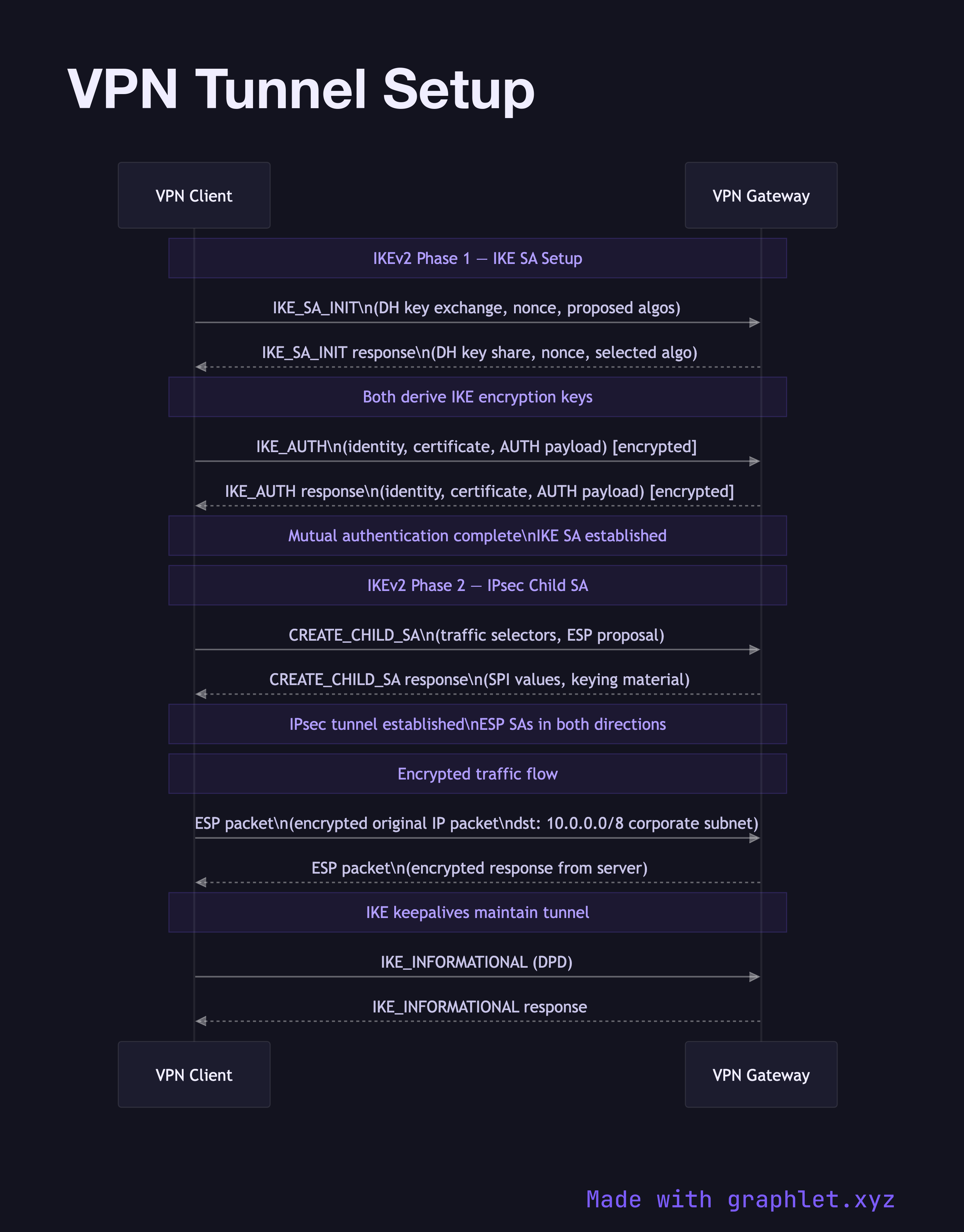

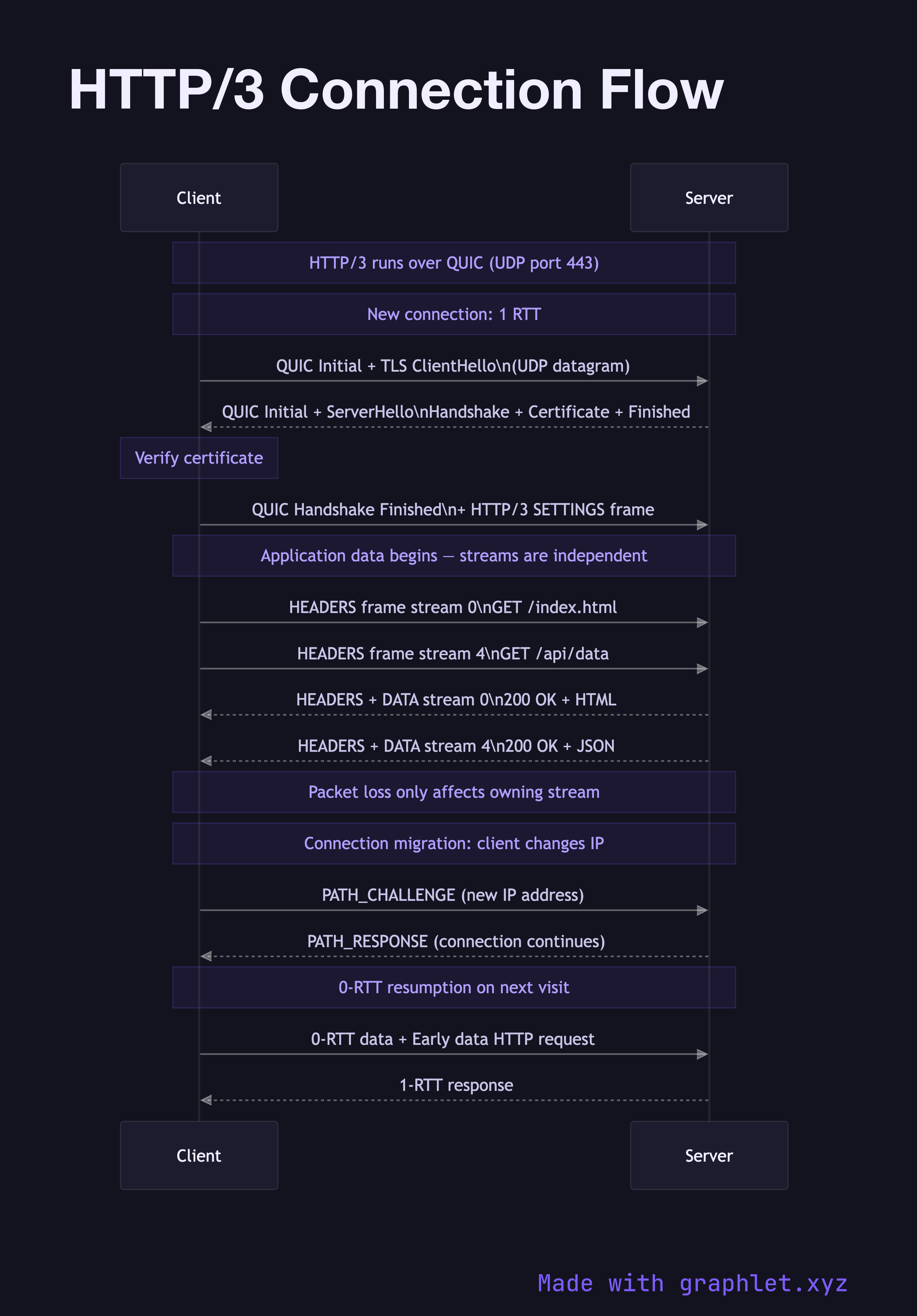

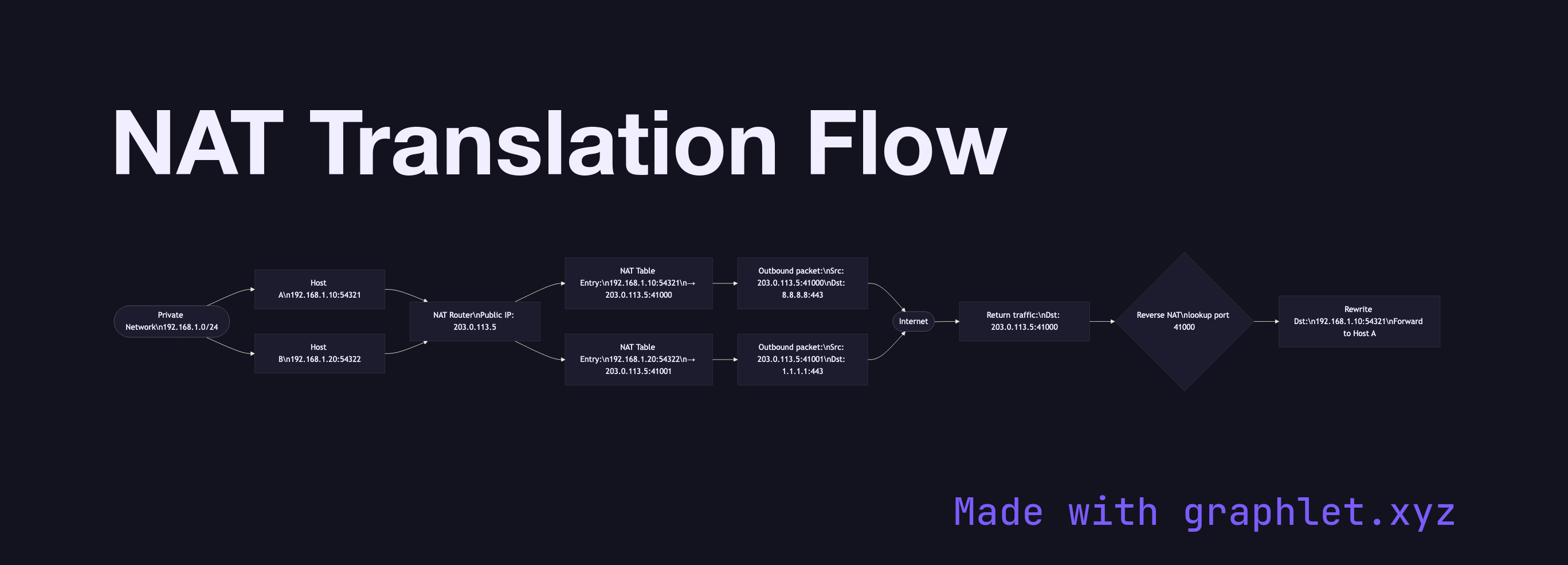

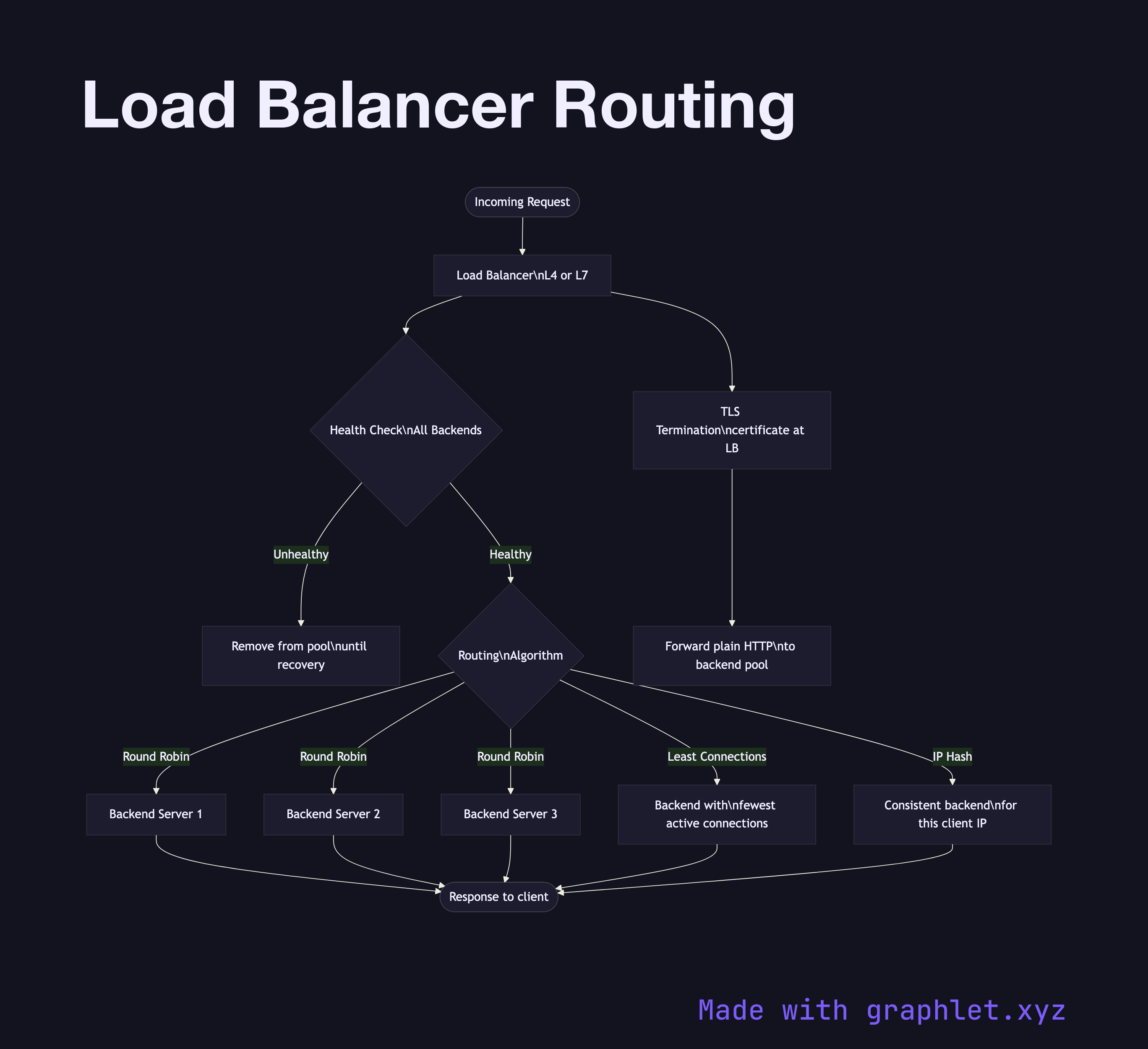

Modern protocol evolution is also well represented: compare HTTP/2 Multiplexing and HTTP/3 Connection Flow to understand how QUIC eliminates head-of-line blocking. Infrastructure diagrams like CDN Request Flow, Load Balancer Routing, and Reverse Proxy Request Flow show how traffic is distributed at scale. Security-focused entries including Firewall Packet Filtering, NAT Translation Flow, and VPN Tunnel Setup round out the collection. Every diagram is free to edit and export directly in Graphlet.

Frequently asked questions

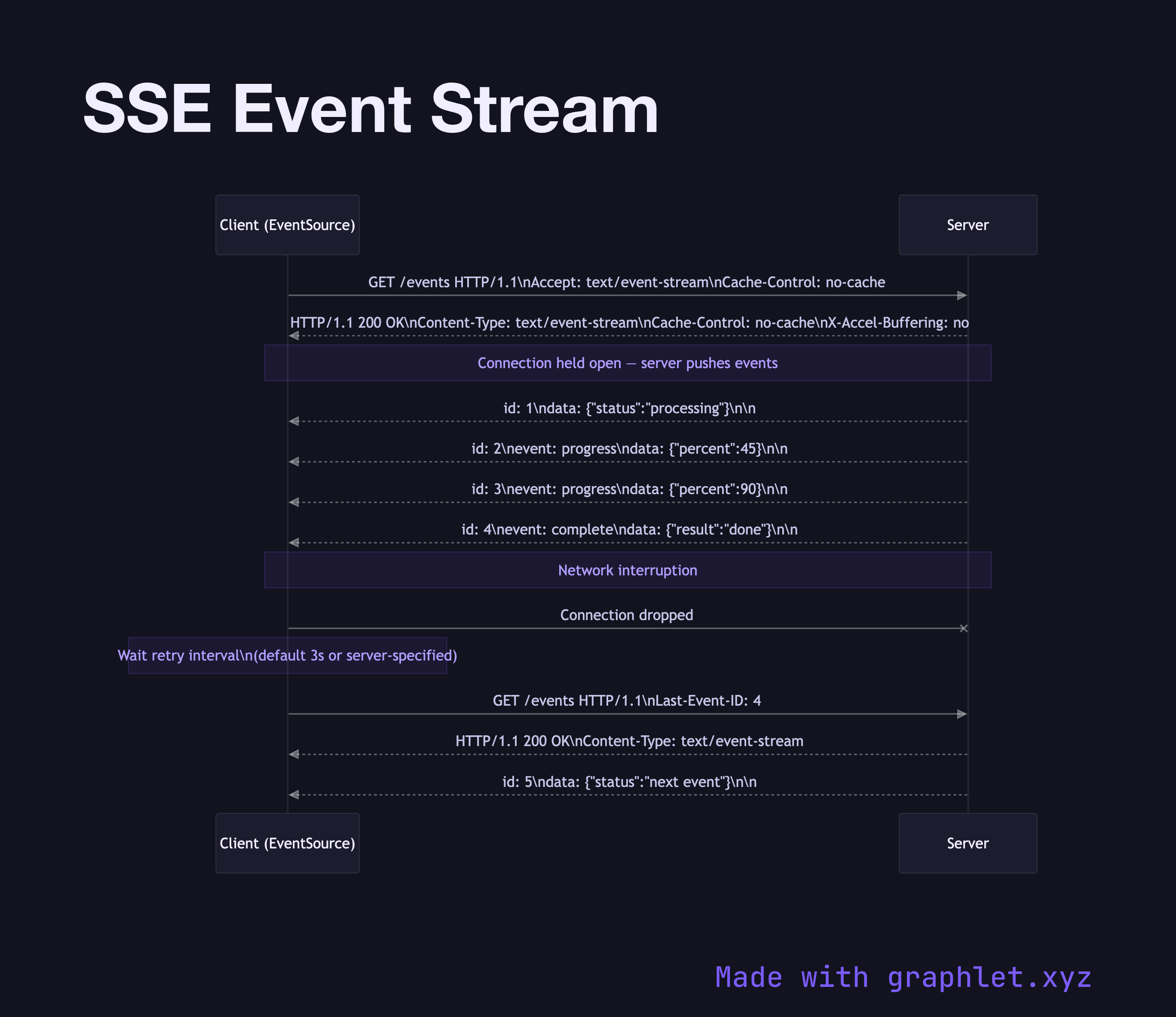

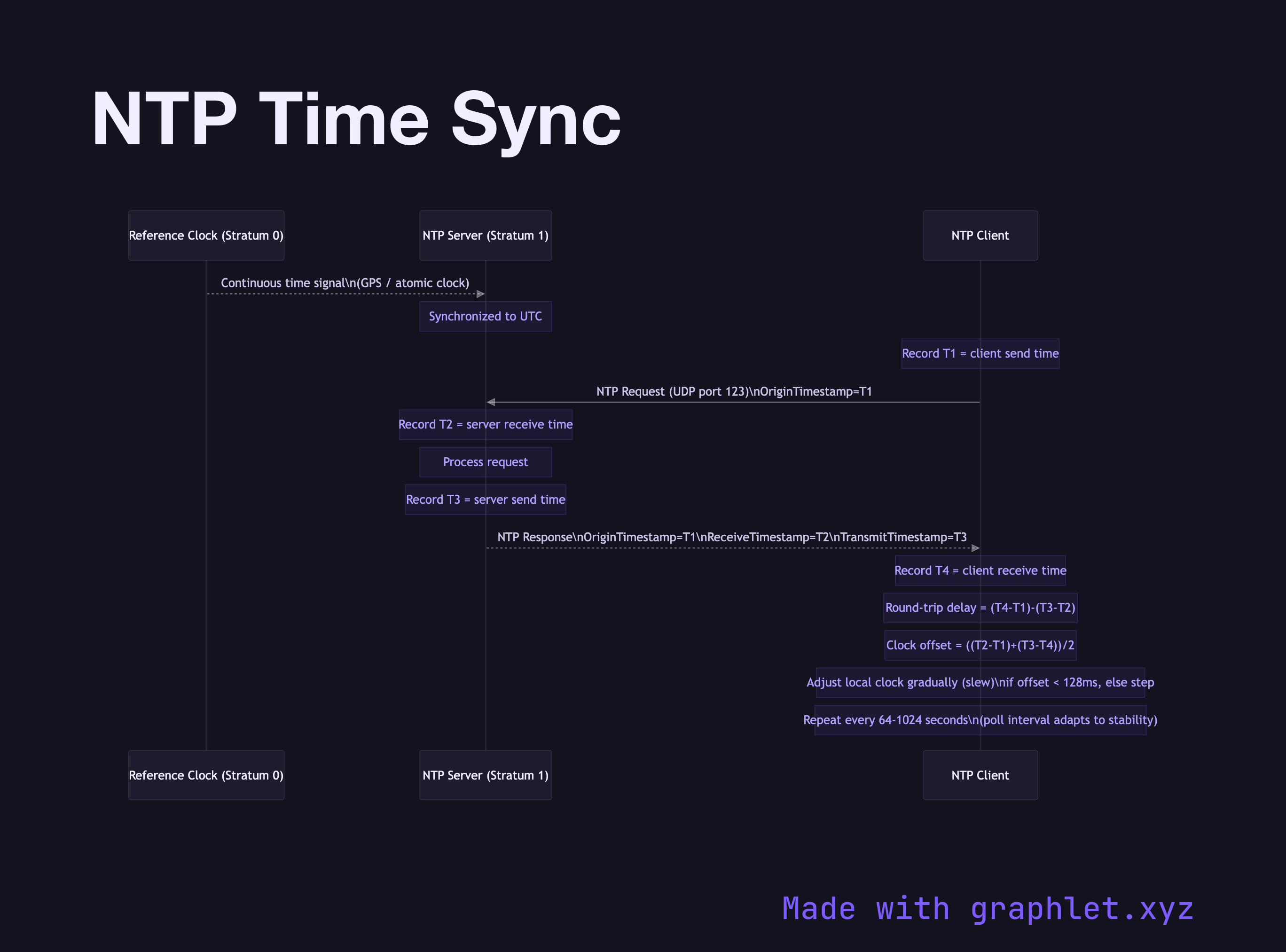

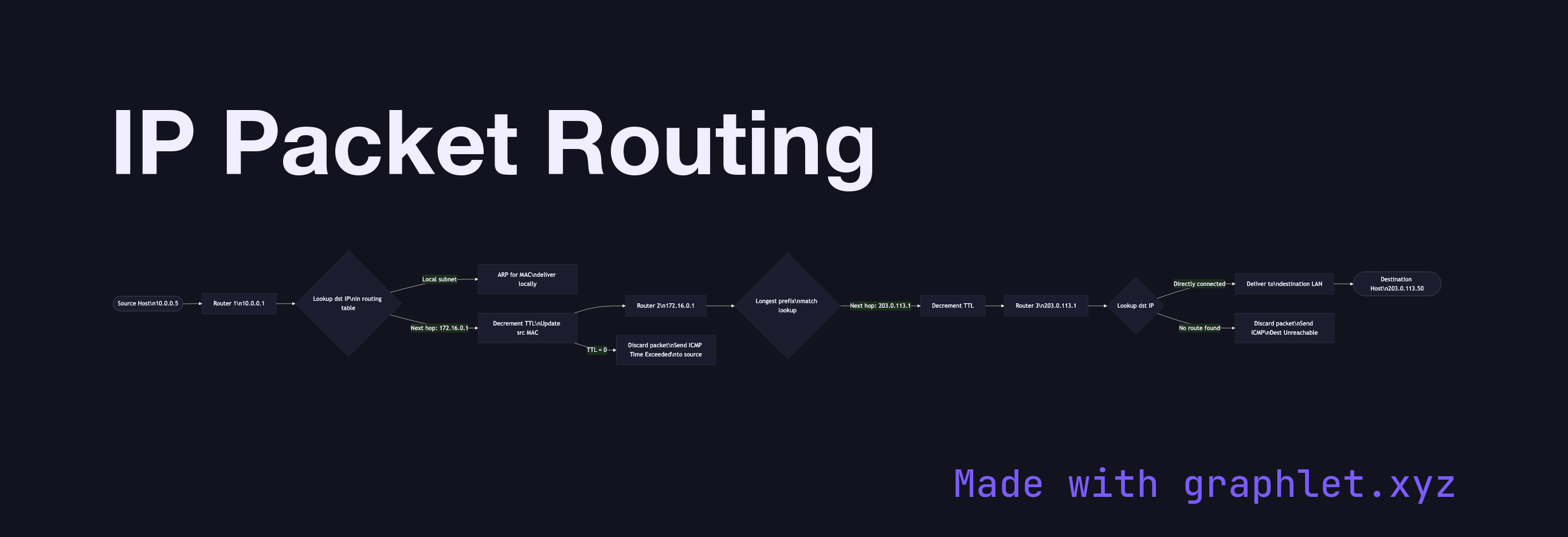

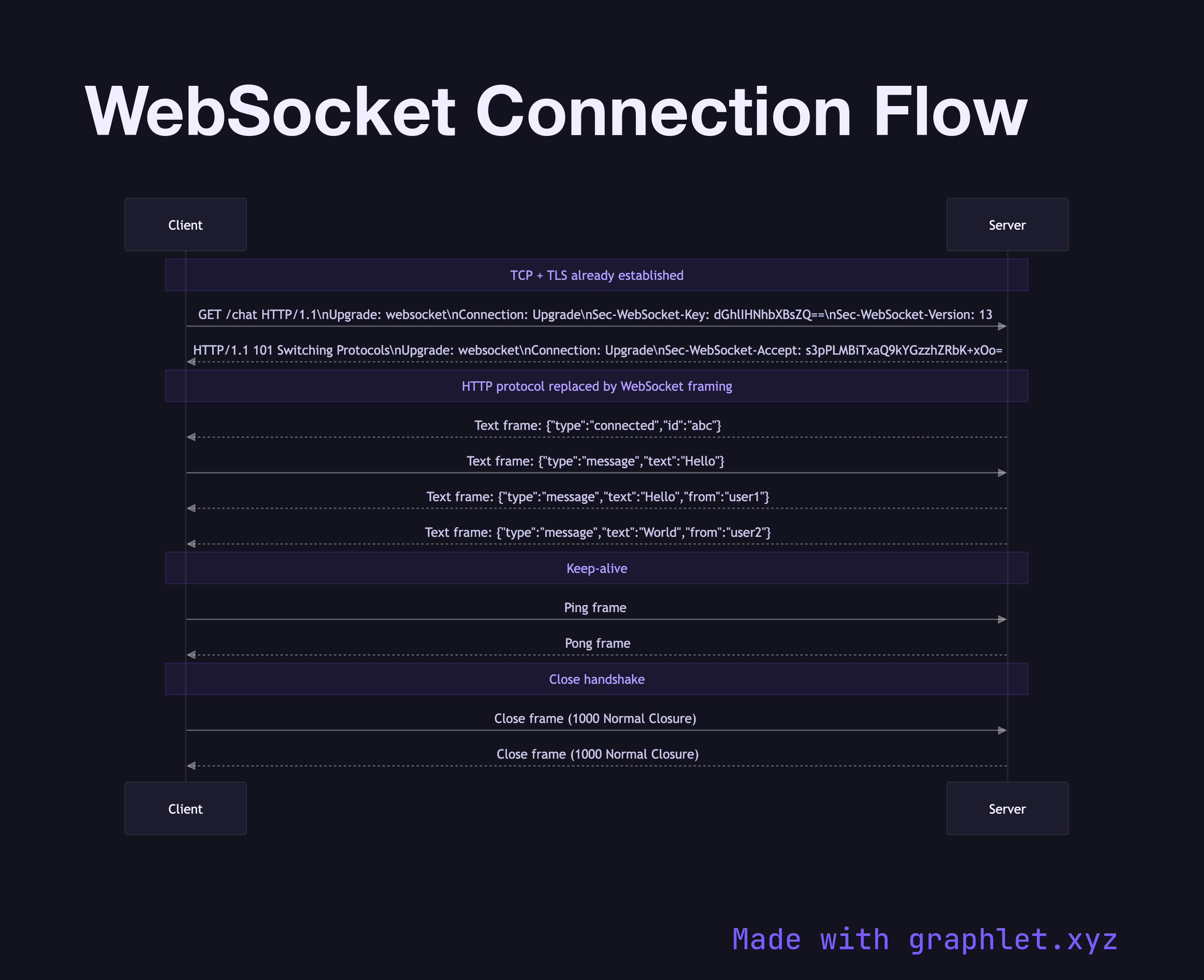

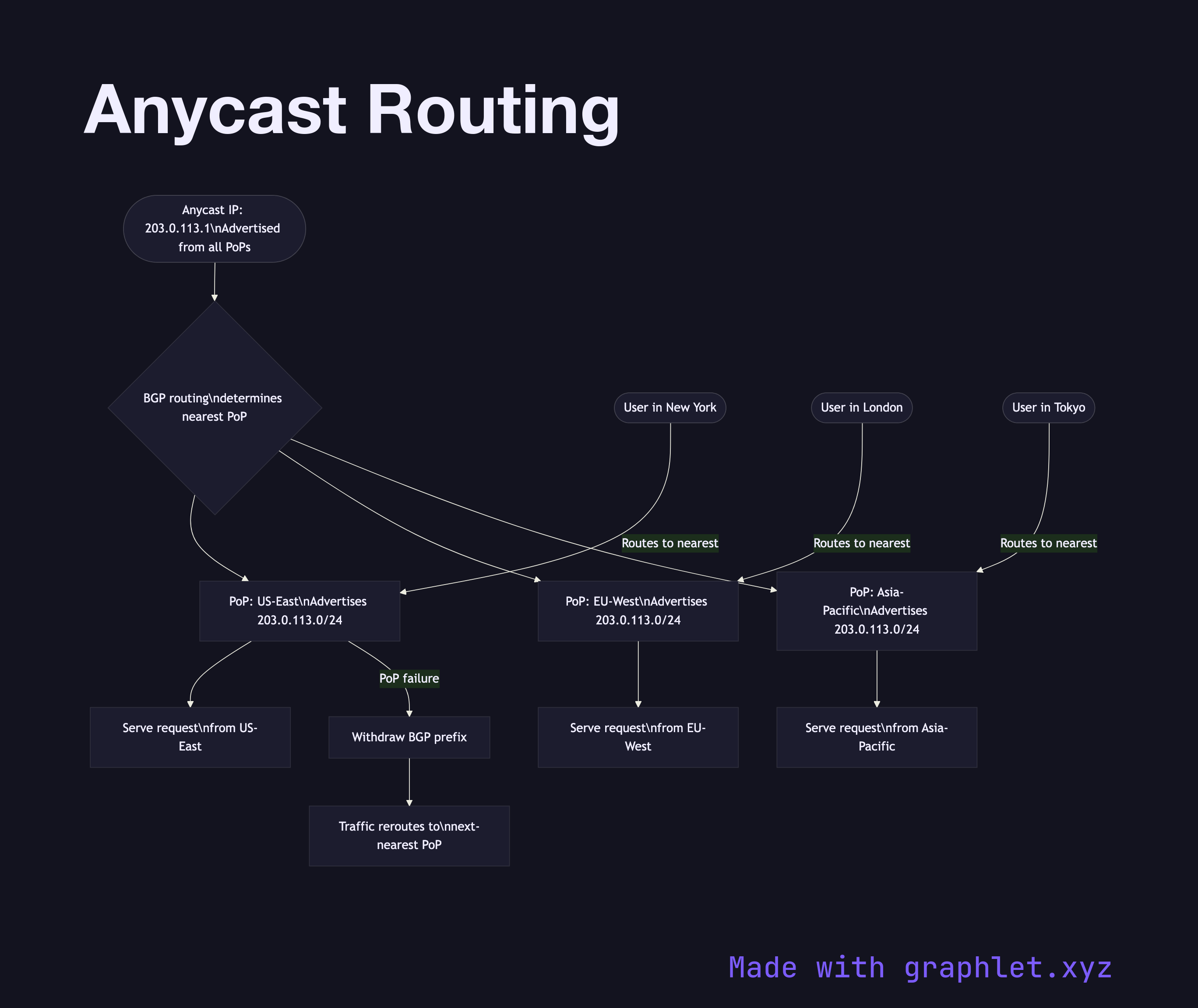

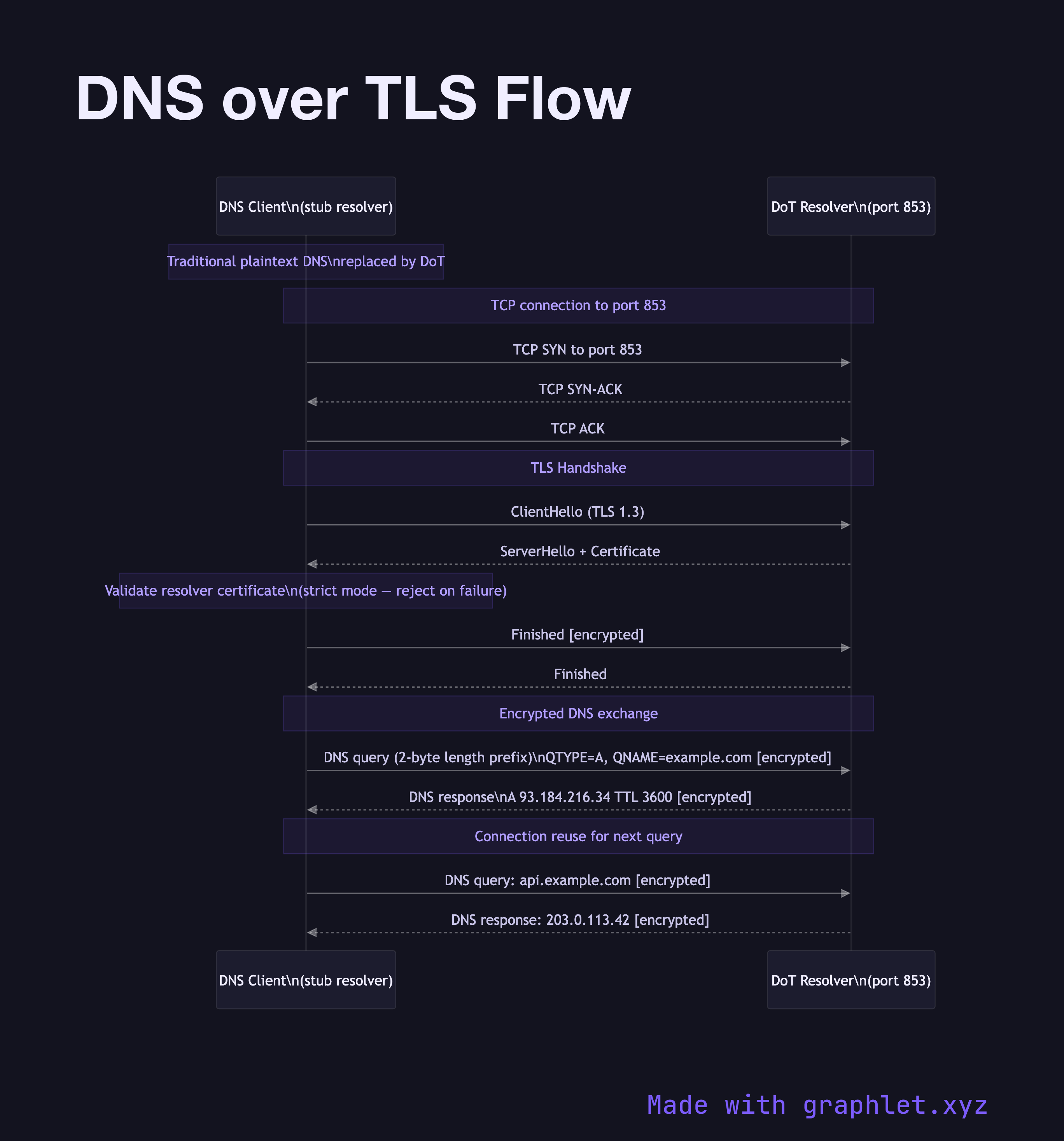

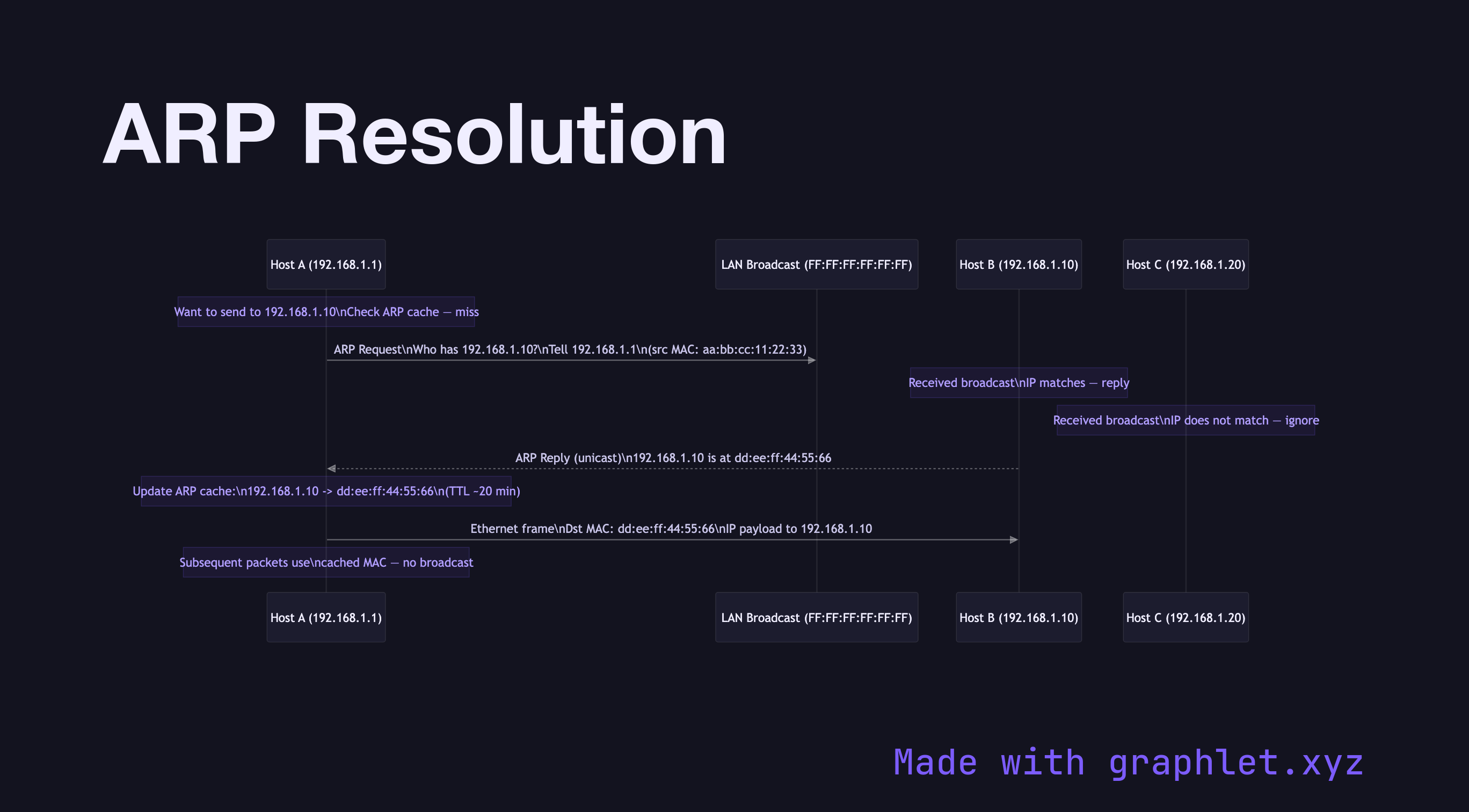

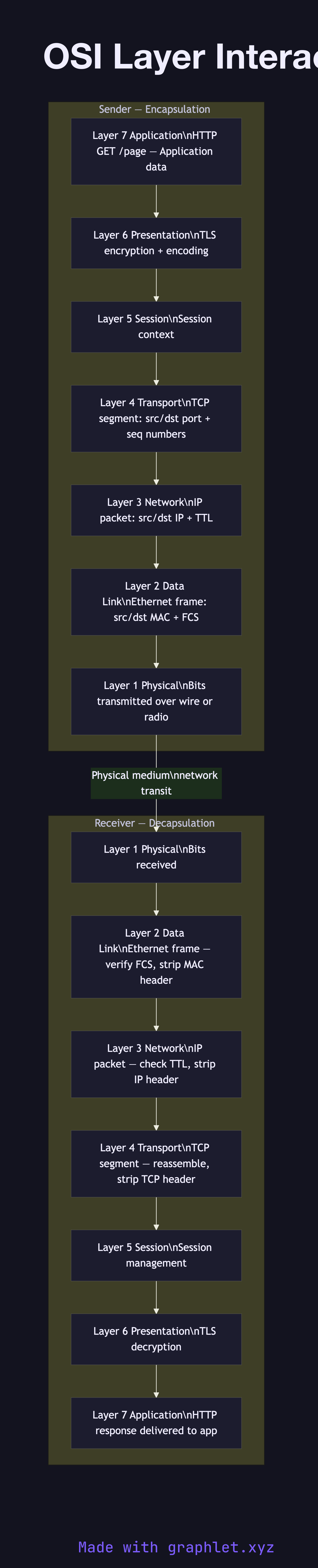

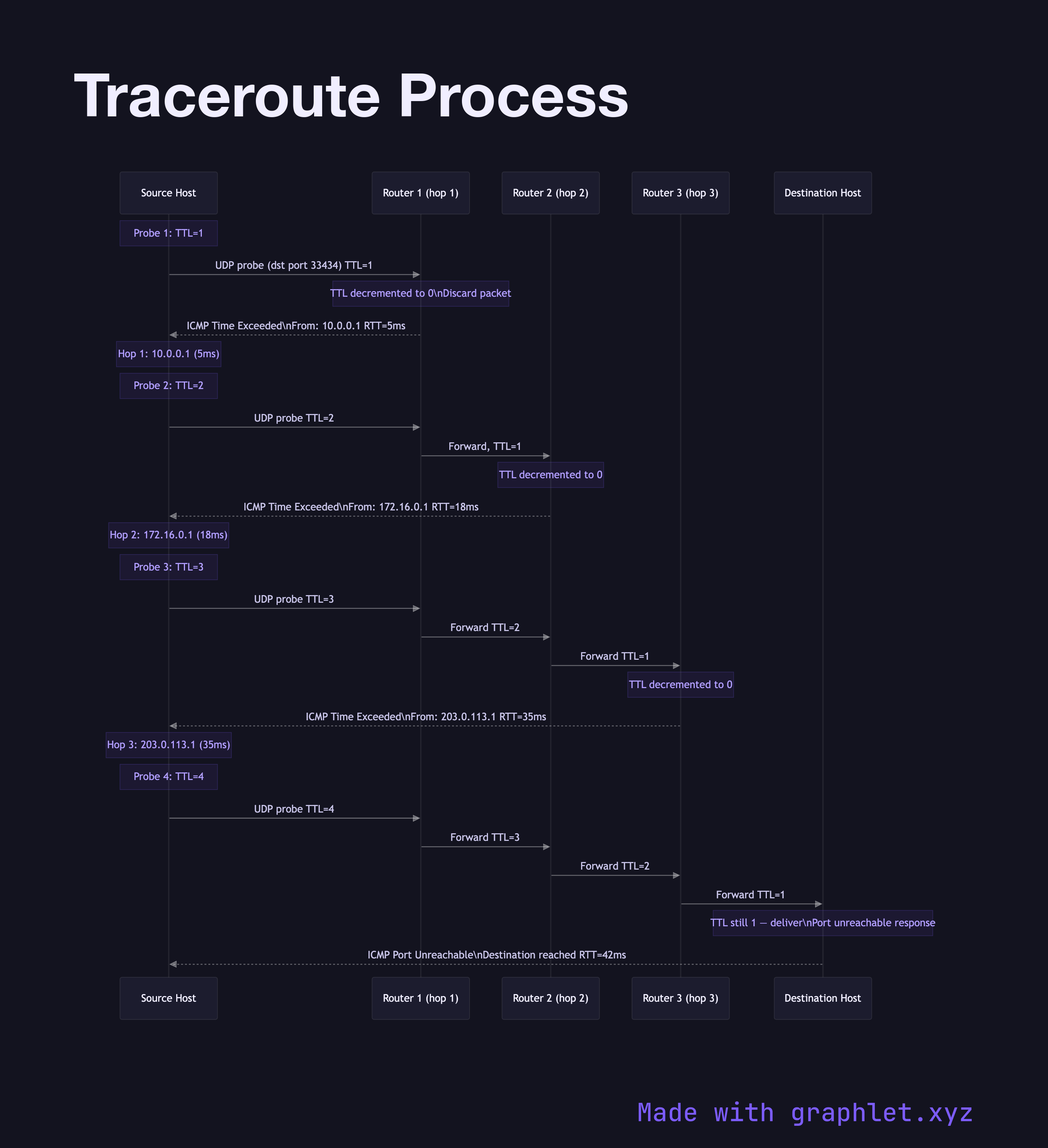

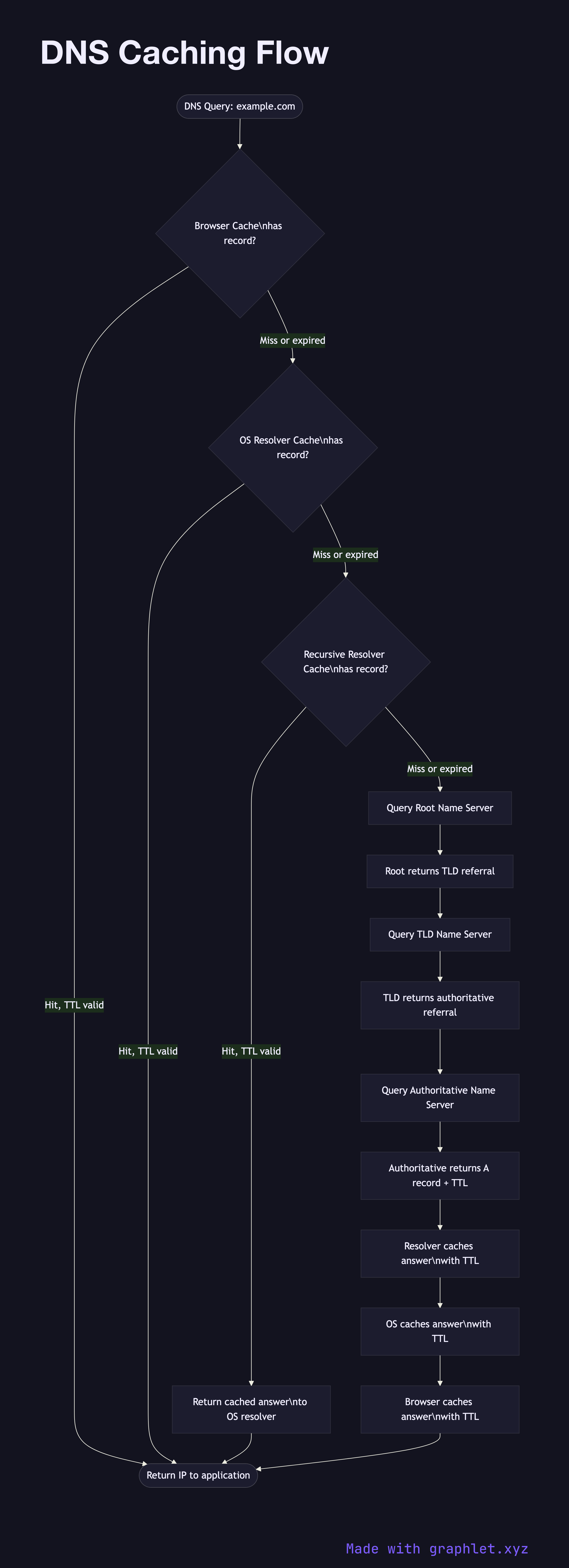

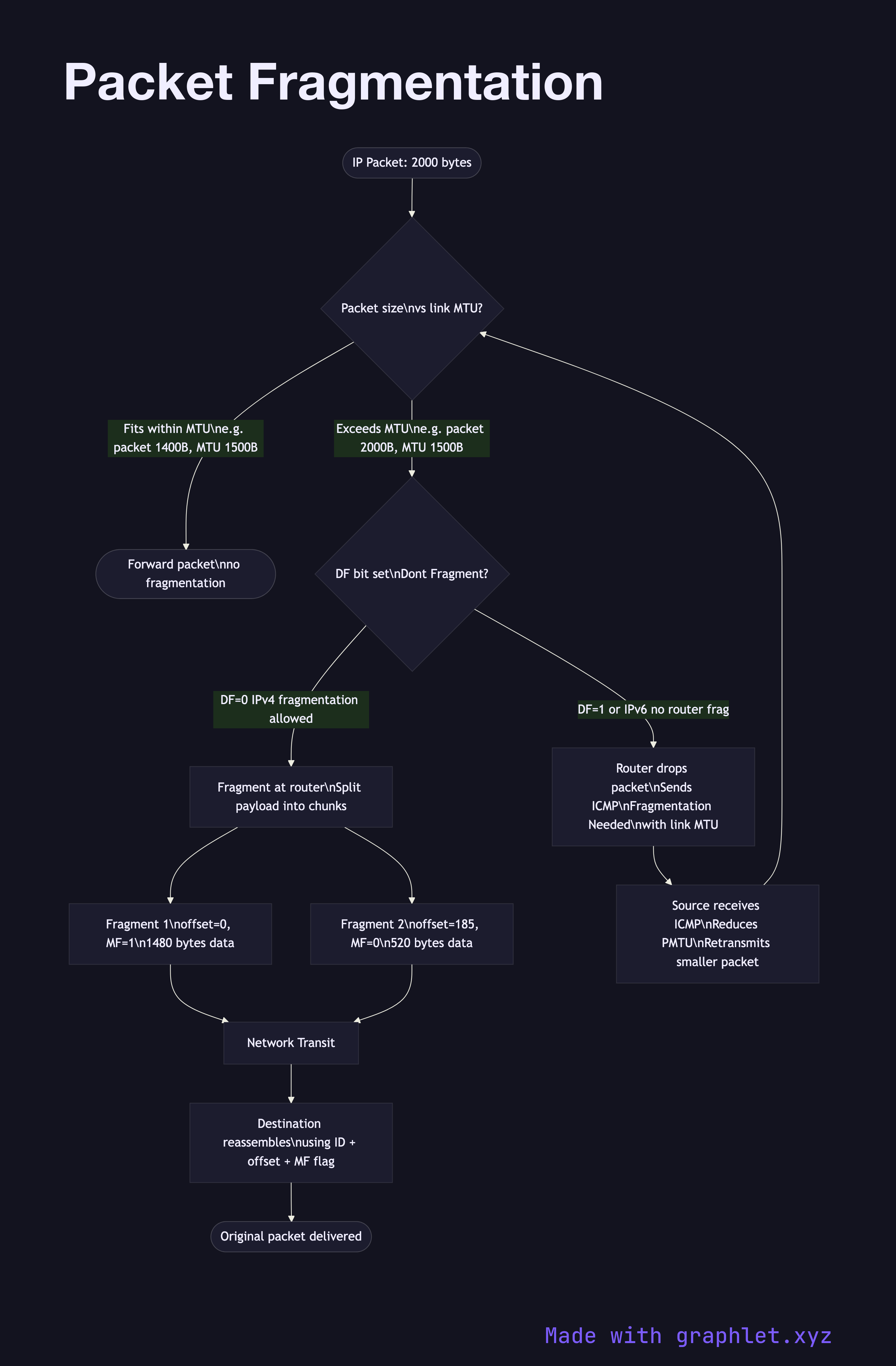

This collection includes 30 free Mermaid diagrams covering DNS resolution, recursive lookup, DNS caching, DNS over HTTPS and TLS, TCP three-way handshake, TLS and HTTPS handshakes, QUIC, HTTP/2 multiplexing, HTTP/3, WebSockets, SSE, CDN request flow, load balancer routing, reverse proxy, NAT, VPN tunnel setup, firewall packet filtering, ARP, DHCP, NTP, OSI layer interaction, anycast routing, IP packet routing, traceroute, UDP, and packet fragmentation.

Use a sequence diagram to show the stub resolver querying a recursive resolver, which walks the DNS hierarchy from root servers to TLD servers to the authoritative name server. The [DNS Recursive Resolution](/diagrams/networking/dns-recursive-resolution) and [How DNS Works](/diagrams/networking/how-dns-works) diagrams in this collection are fully editable starting points.

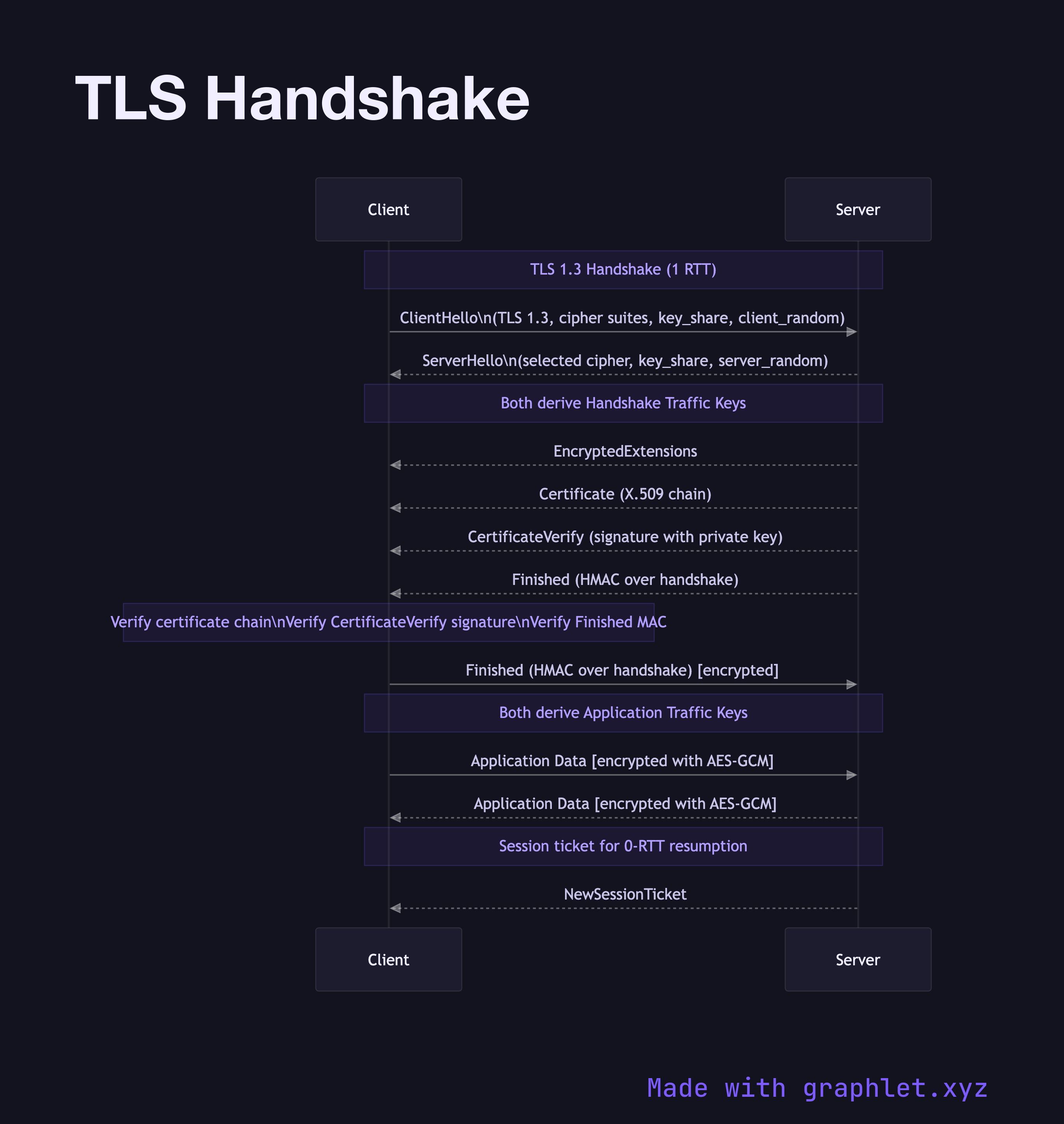

A sequence diagram works best for TLS. Map participants as Client and Server, then show the ClientHello, ServerHello, Certificate, CertificateVerify, and Finished message exchange. The [TLS Handshake](/diagrams/networking/tls-handshake) diagram here models TLS 1.3 and is ready to edit in Graphlet.

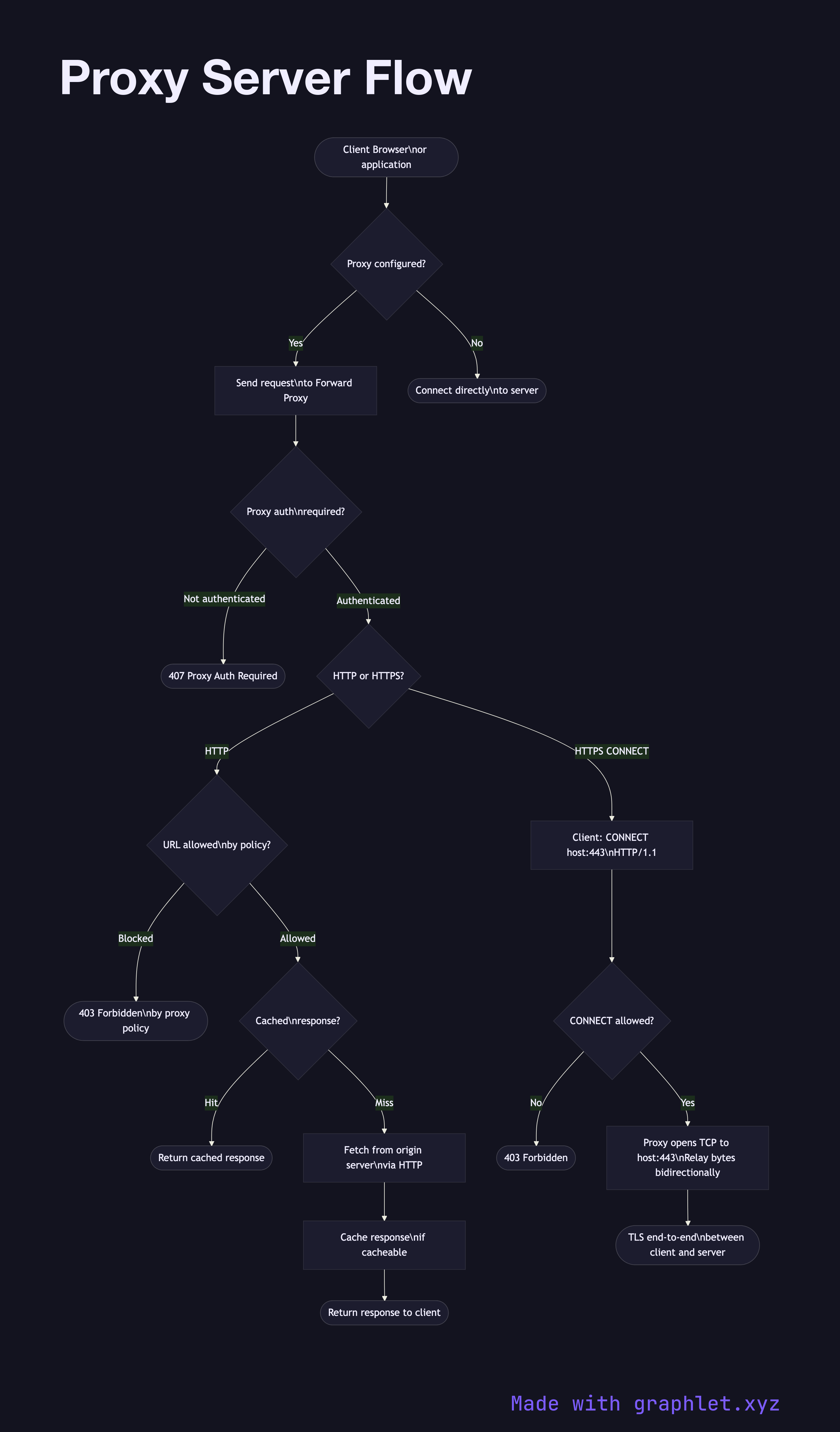

A forward proxy diagram shows client requests flowing outward through the proxy to the internet, with the proxy acting on behalf of clients. A reverse proxy diagram shows inbound client requests hitting the proxy first, which then routes to backend servers — hiding server topology. Compare [Proxy Server Flow](/diagrams/networking/proxy-server-flow) and [Reverse Proxy Request Flow](/diagrams/networking/reverse-proxy-request-flow) for side-by-side reference.

Use a **sequence diagram** for protocol exchanges with ordered message passing between named participants (e.g., TCP handshake, TLS, DNS). Use a **flowchart** for decision-based or branching flows (e.g., CDN cache hit/miss, firewall rule evaluation, NAT translation). Most diagrams in this collection follow this convention.
